SUCCESSOR + BASE2 – programmer for SPI FLASH memory and EC firms ENE/ITE/MEC/NUVOTON/EXPLORE. Output control signal levels 1v8 and 3v3. ESD protection is already installed. ORIGINAL, BRAND NEW.
SHIPPING AND HANDLING WITHIN 3 BUSINESS DAYS FROM RUSSIA.
Based on 32-bit ARM® Cortex®-M4 RISC processor 120 MHz USB_FS And GoWin FPGA
To date, work has been implemented with:
SPI FLASH (up to 512Mbit inclusive already implemented)
ITE (transfer completed)
ENE (transfer completed)
NUVOTON (transfer completed. Own bootloader for speed.)
TETRIS (and ITE_lite) are fully supported
KEYBOARD_TEST (migration completed)
MEC (ARC-625D EC) (migration completed)
In the plans:
EXPLORE (whistle adapter will not be needed)
I2C
A closed group (Telegram) has been created. You can get access to it after paying for the programmer. In this group, we will try to solve problems promptly and only by SUCCESSOR.

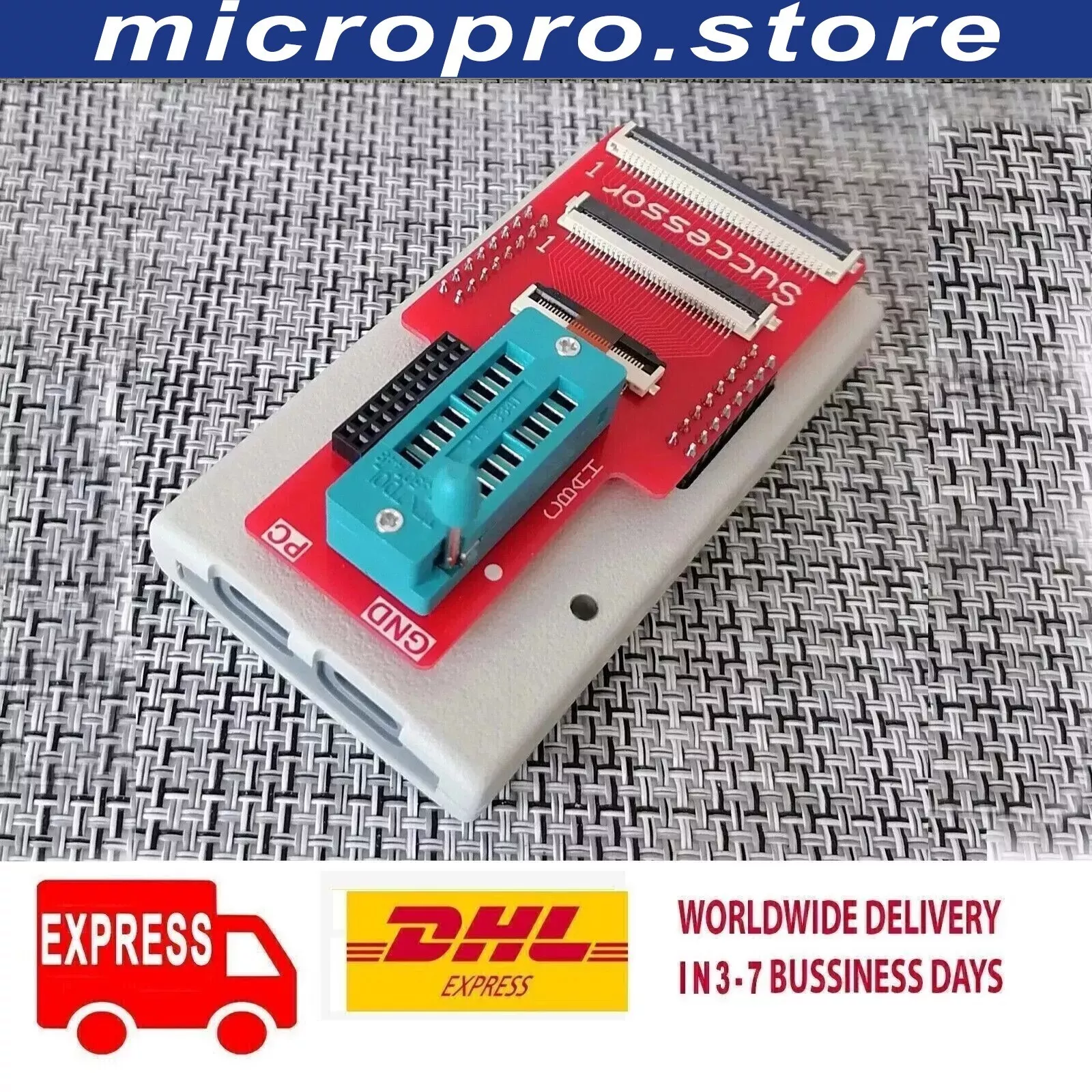

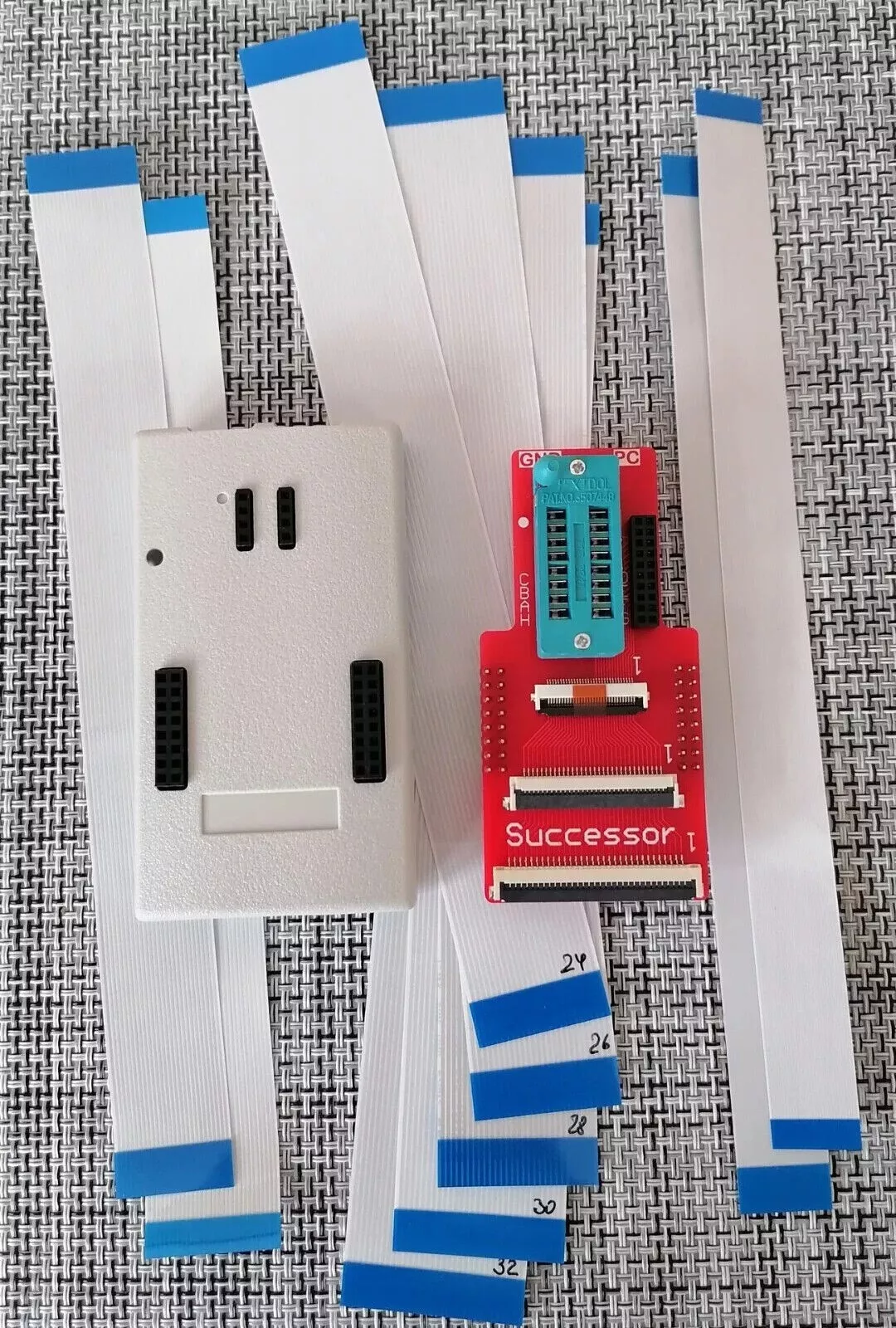

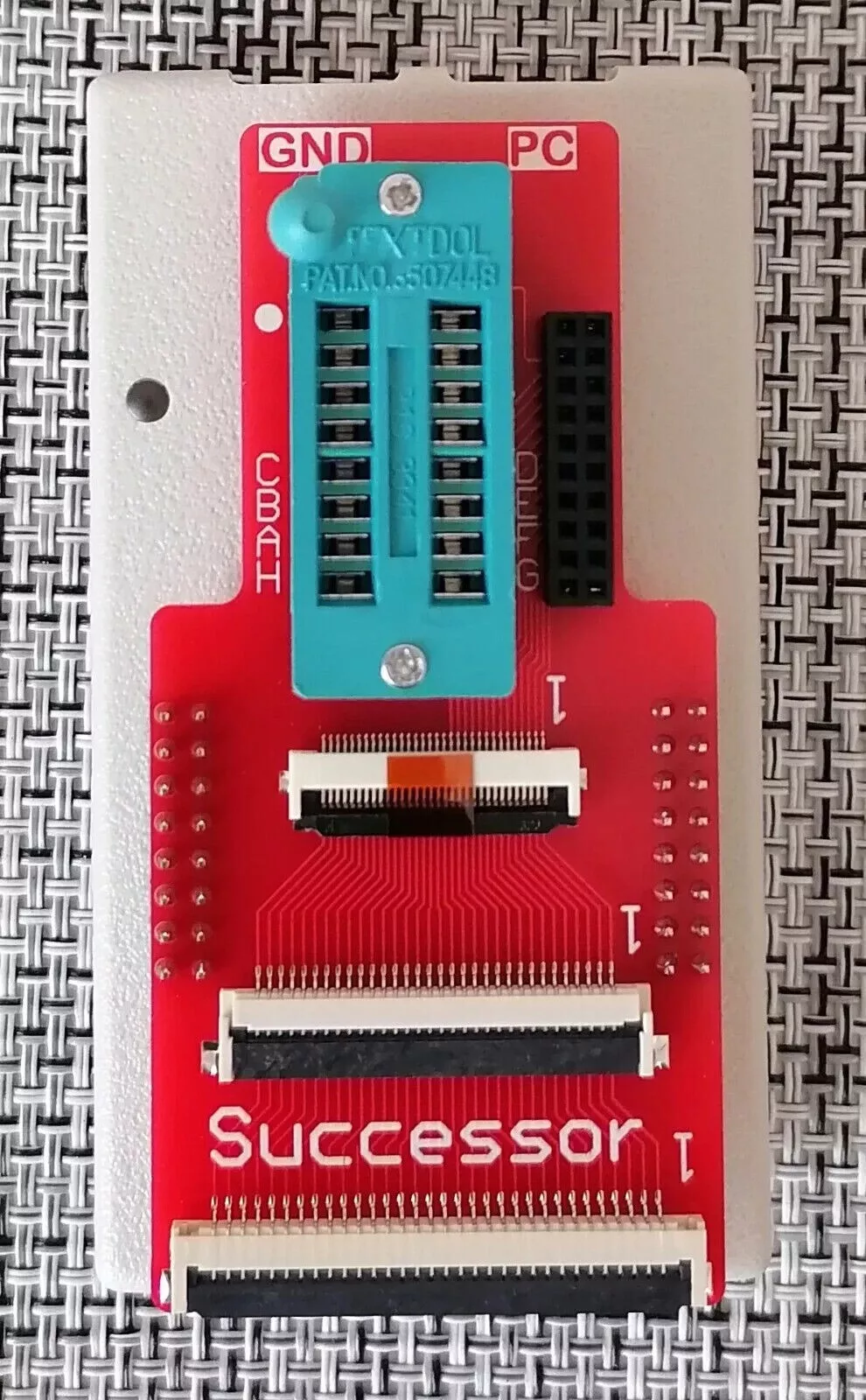

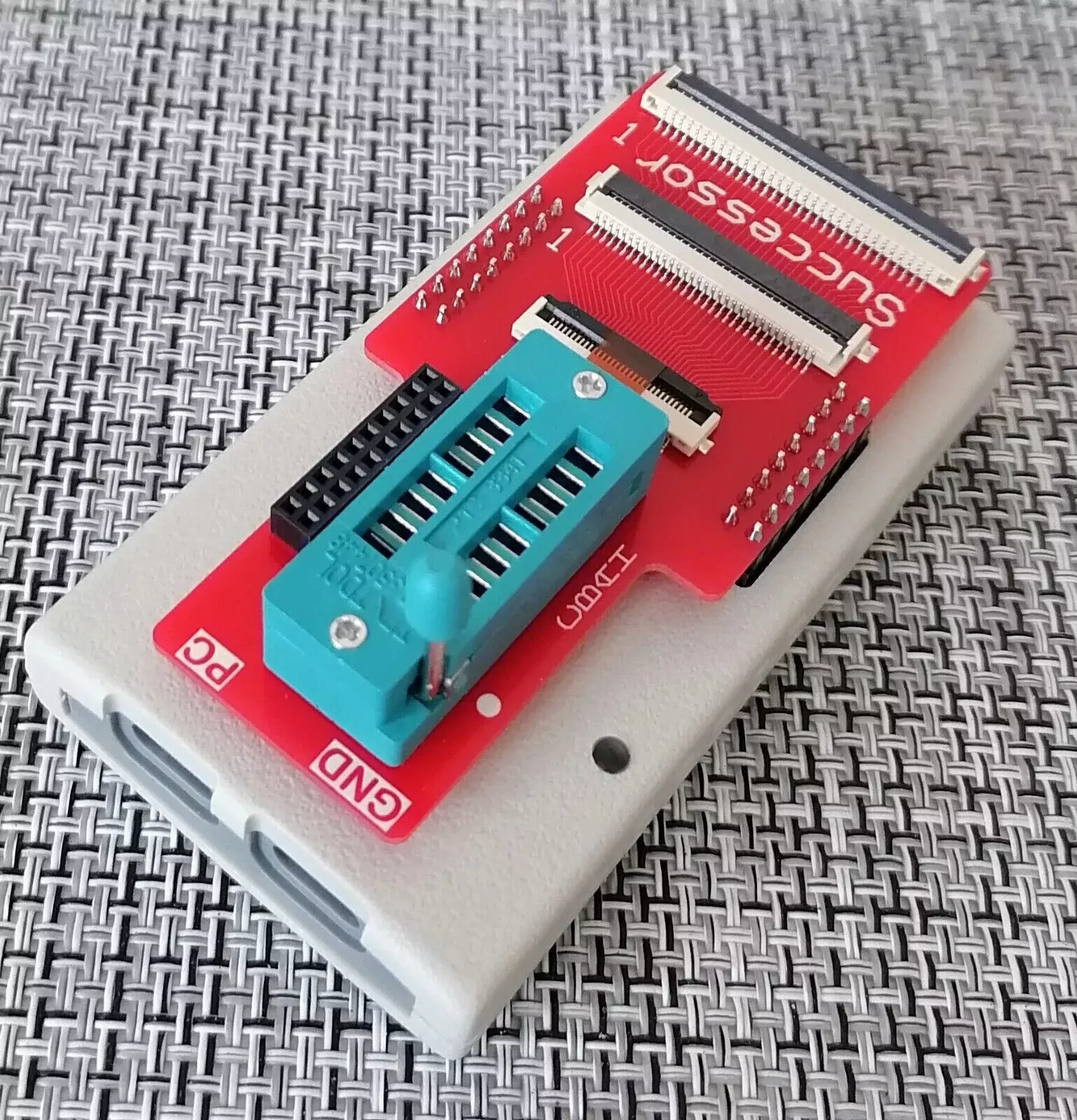

The SUCCESSOR kit consists of a module in a case (see photo), an adapter with 05/08/1mm connectors, a ZIF socket for working with DIP cases, a connector for connecting expansion boards for EC programming and a basic set of cables 05mm(30/32pin)/08mm(26/30)/1mm(24/26/28/30/32)

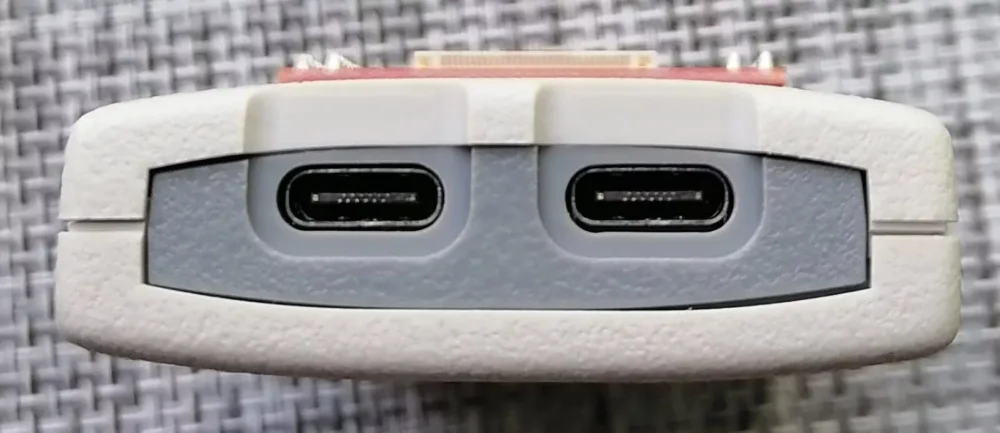

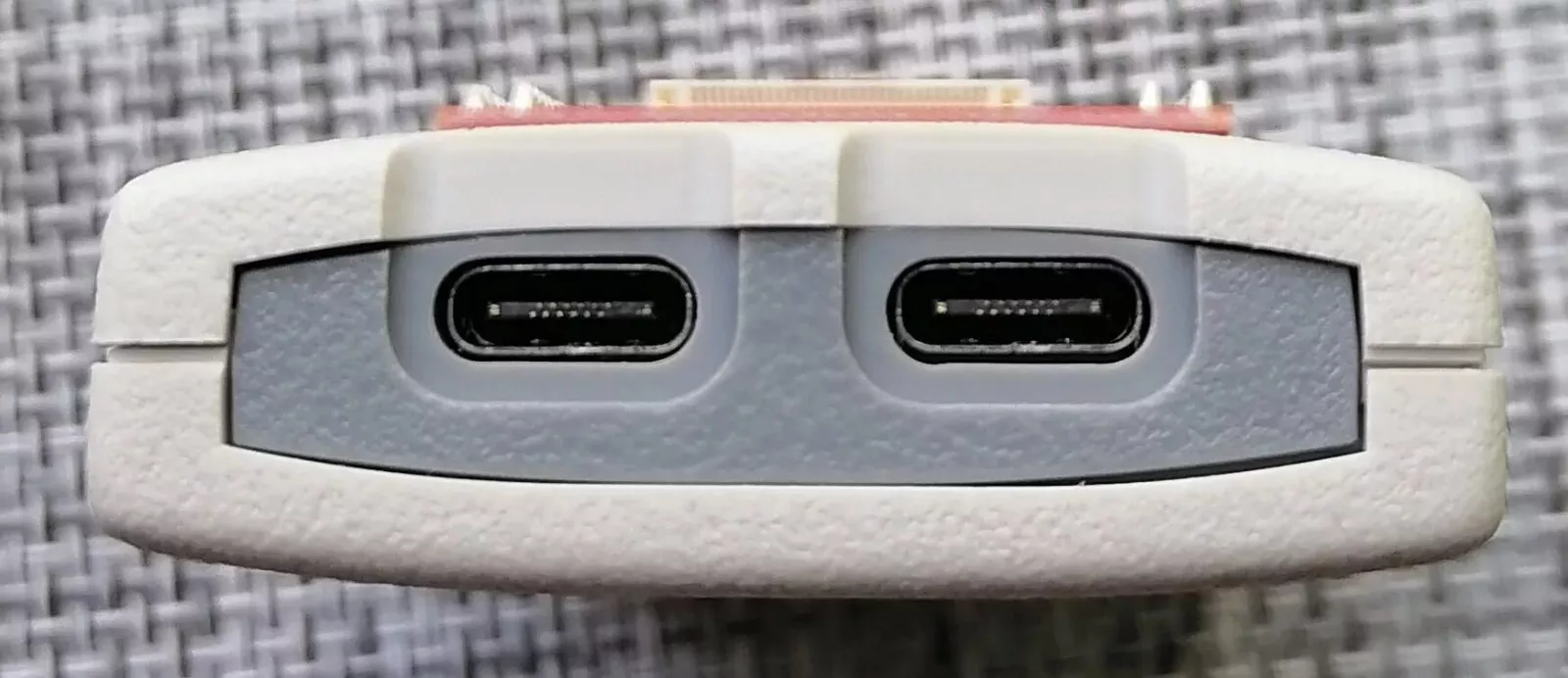

IMPORTANT!! Socket for SPI FLASH and USB cables (2 pieces TYPE_C) are not included in the package!
Leather case not included. Can be ordered additionally. Article 7179 (section Accessories).
To work with EC, you will need a second USB cable to connect the GND of the programmer and the MB.
