Programmer SUCCESSOR BASE3 for SPI FLASH, EC – ORIGINAL NEW

Programmer SUCCESSOR (Successor) + BASE3 – programmer for SPI FLASH memory and EC from ENE/ITE/MEC/NUVOTON/EXPLORE. Output control signal levels are 1v8 and 3v3. ESD protection is already installed.

The Successor programmer is based on a
32-bit ARM® Cortex®-M4 RISC processor 120 MHz USB_FS
and
FPGA from GoWin.

Today it works with SPI FLASH,
ITE,
ENE, NUVOTON (core CR16CPlus. Its own bootloader for speed.)
TETRIS (and ITE_lite) are fully supported by
KEYBOARD_TEST,
MEC (core ARC-625D),
I2C,
ITE on the I2C bus (already tested by users)
Next, the transfer is planned:
EXPLORE (whistle adapter will not be needed).

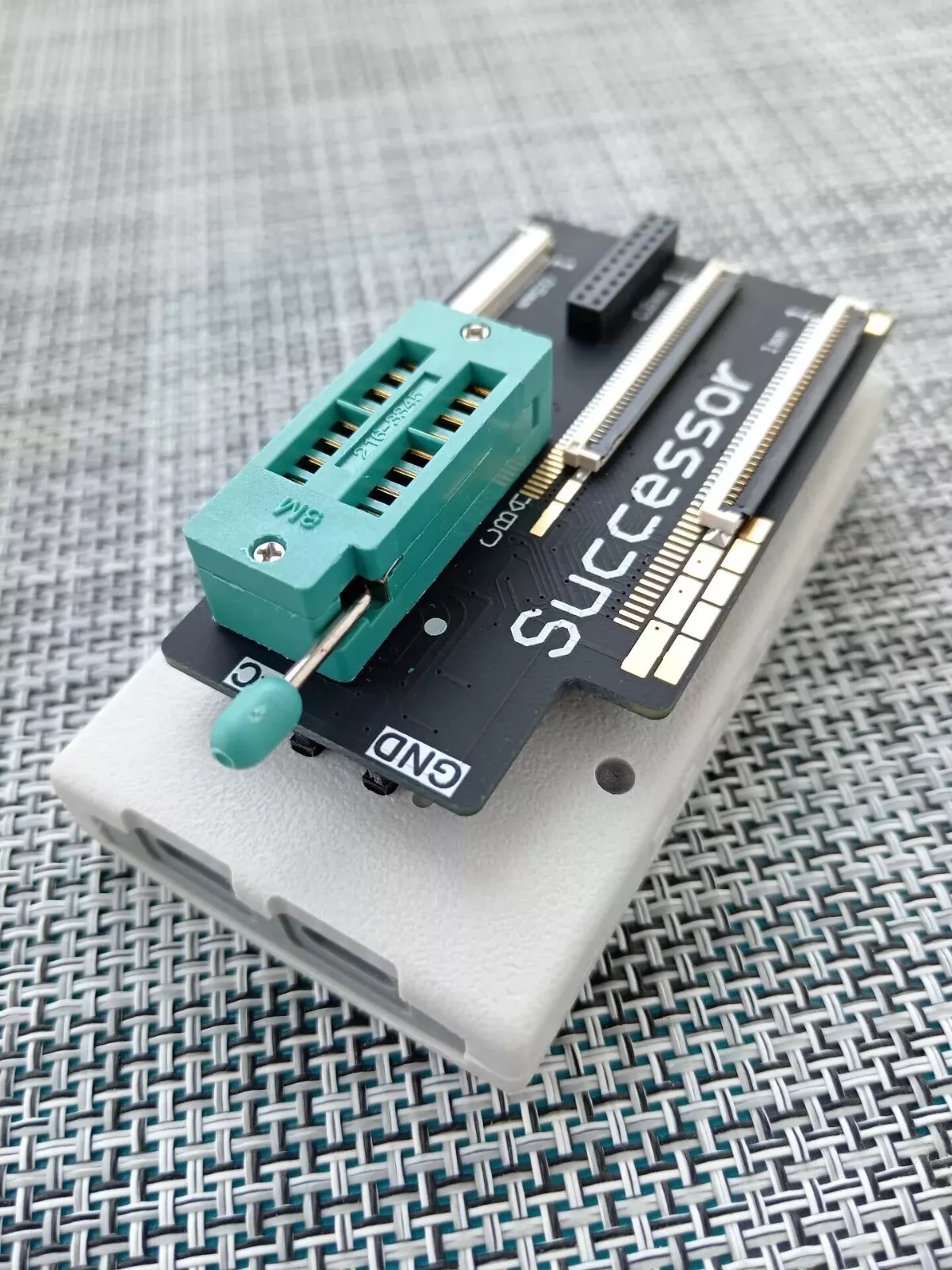

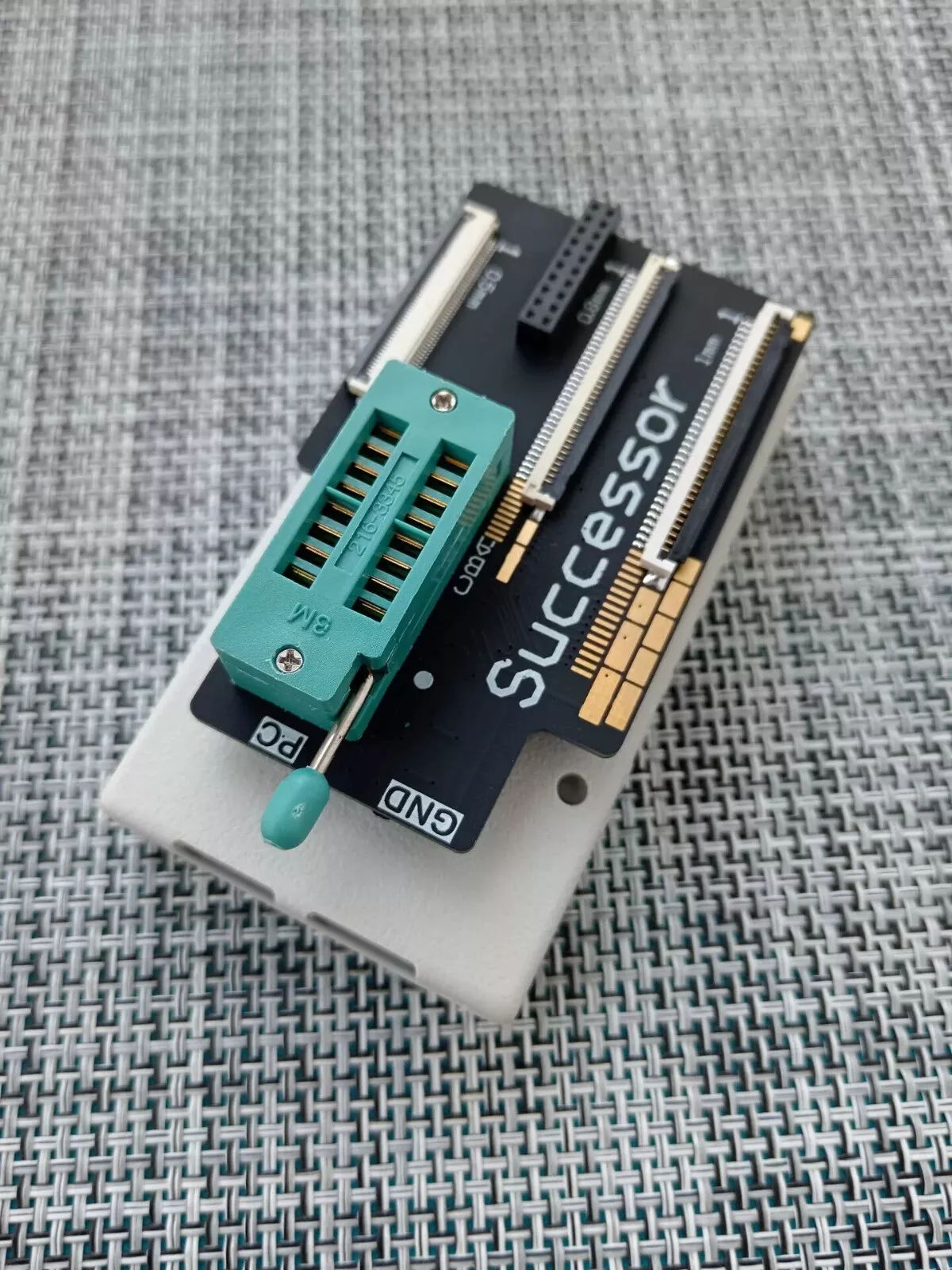

The following are installed on BASE3:
– ZIF socket (8 upper ones for I2C/SPI, 8 lower ones – AH duplication) Convenient to work with DIP packages.
– connector (black, vertical) for external expansion cards for EC programming (*)
– 50 pins with 0.5mm pitch
– 34 pins with 1mm pitch
– 40 pins with 0.8mm pitch

BASE3 can be used on a permanent basis and for working with EC , and for SPI, and for I2C and for testing keyboards with the number of pins up to 50 inclusive.

A closed group (Telegram) has been created. You can access it after paying for the programmer. In this group we will try to solve problems promptly and only by SUCCESSOR.

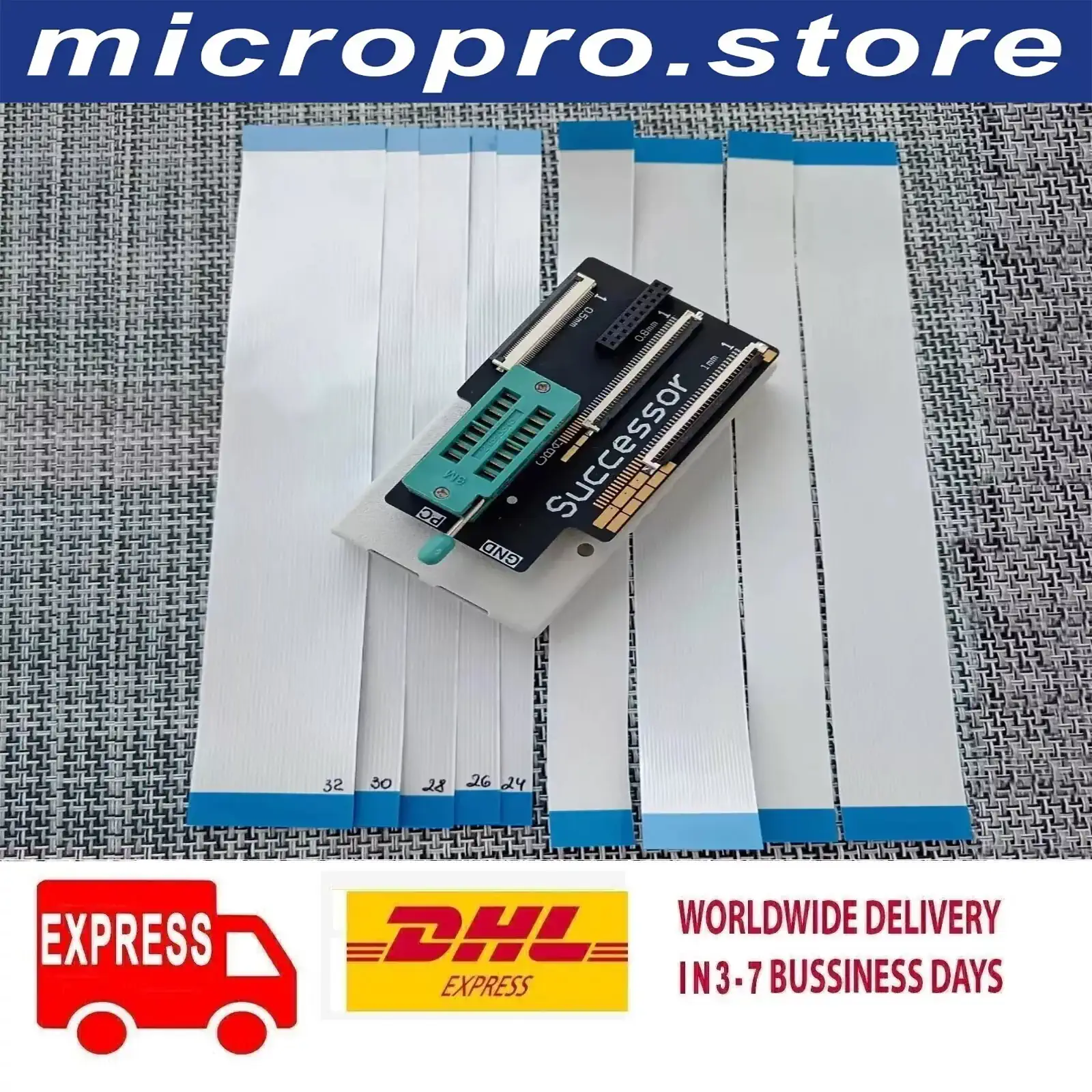

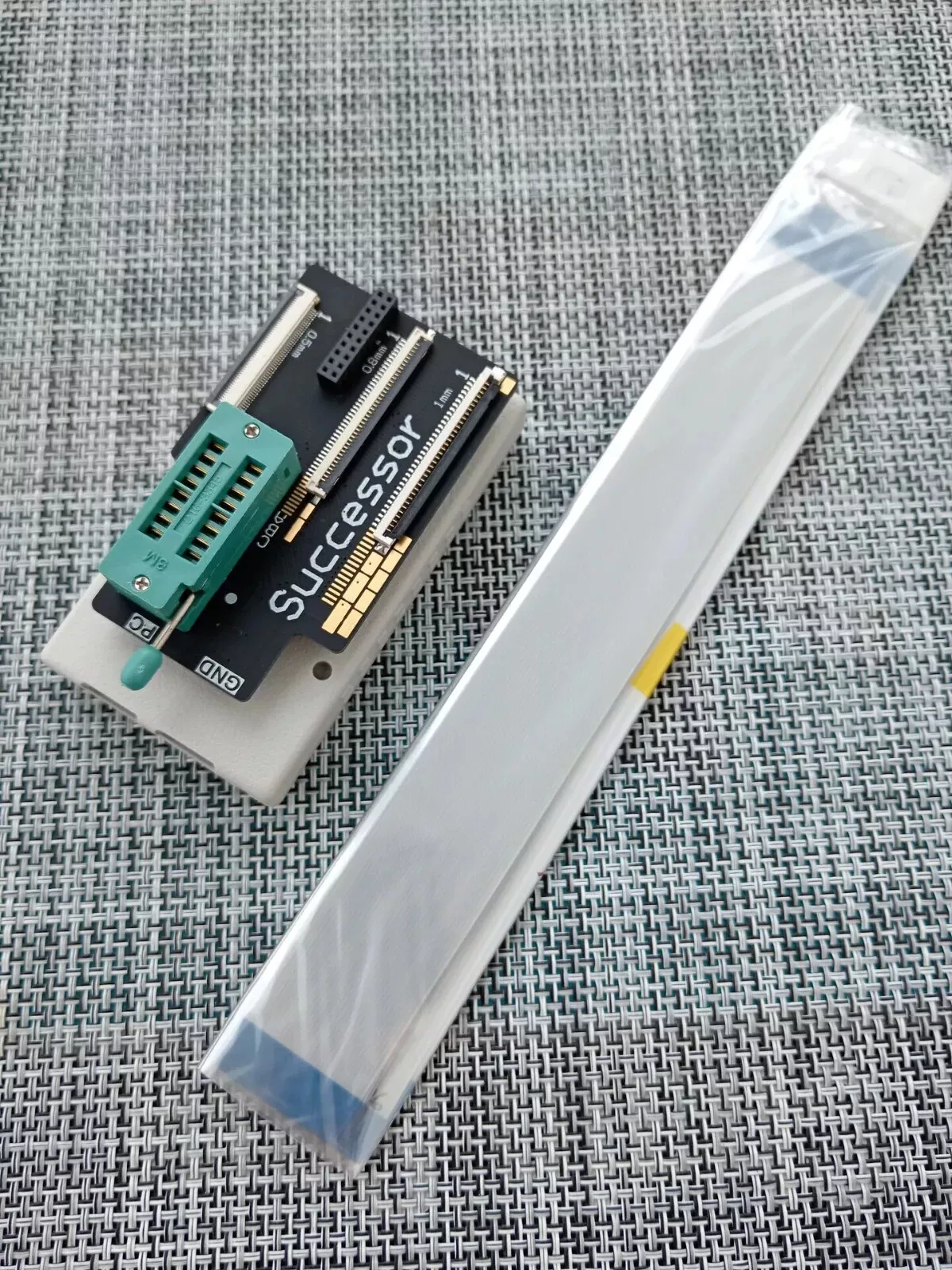

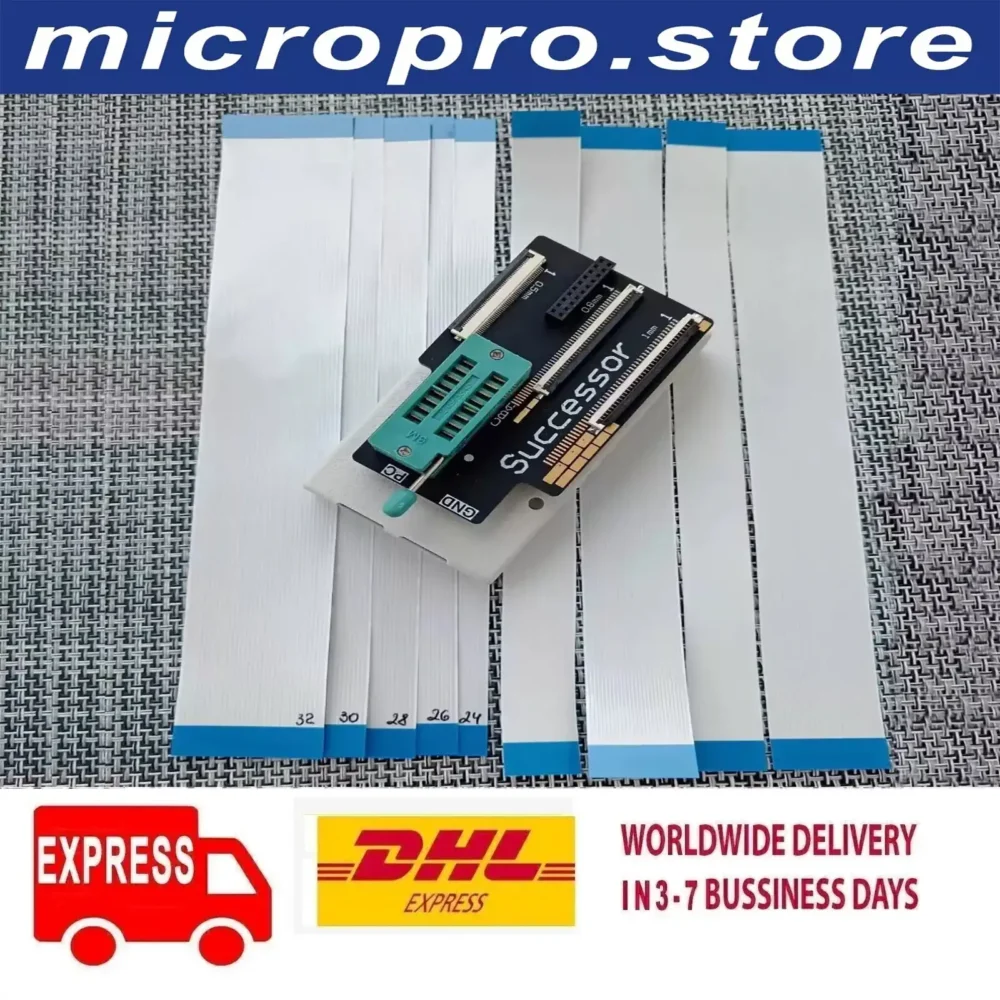

The delivery set (photos 4 and 7) consists of a SUCCESSOR programmer module in a housing, a BASE3 board and a basic set of cables in the amount of 9 pieces: with a pitch of 05 mm (for 30 and 32 pin), with a pitch of 08 mm (for 26 and 30 pin) , in 1 mm increments (at 24, 26, 28, 30, 32 pin)

IMPORTANT! The following items are not included in the package with the programmer:

1. Socket for SPI FLASH.
   2. To work with the programmer, you will need two USB TYPE_C cables. One for communication with the computer, the second for connecting the GND of the programmer and MB when working with EC.
