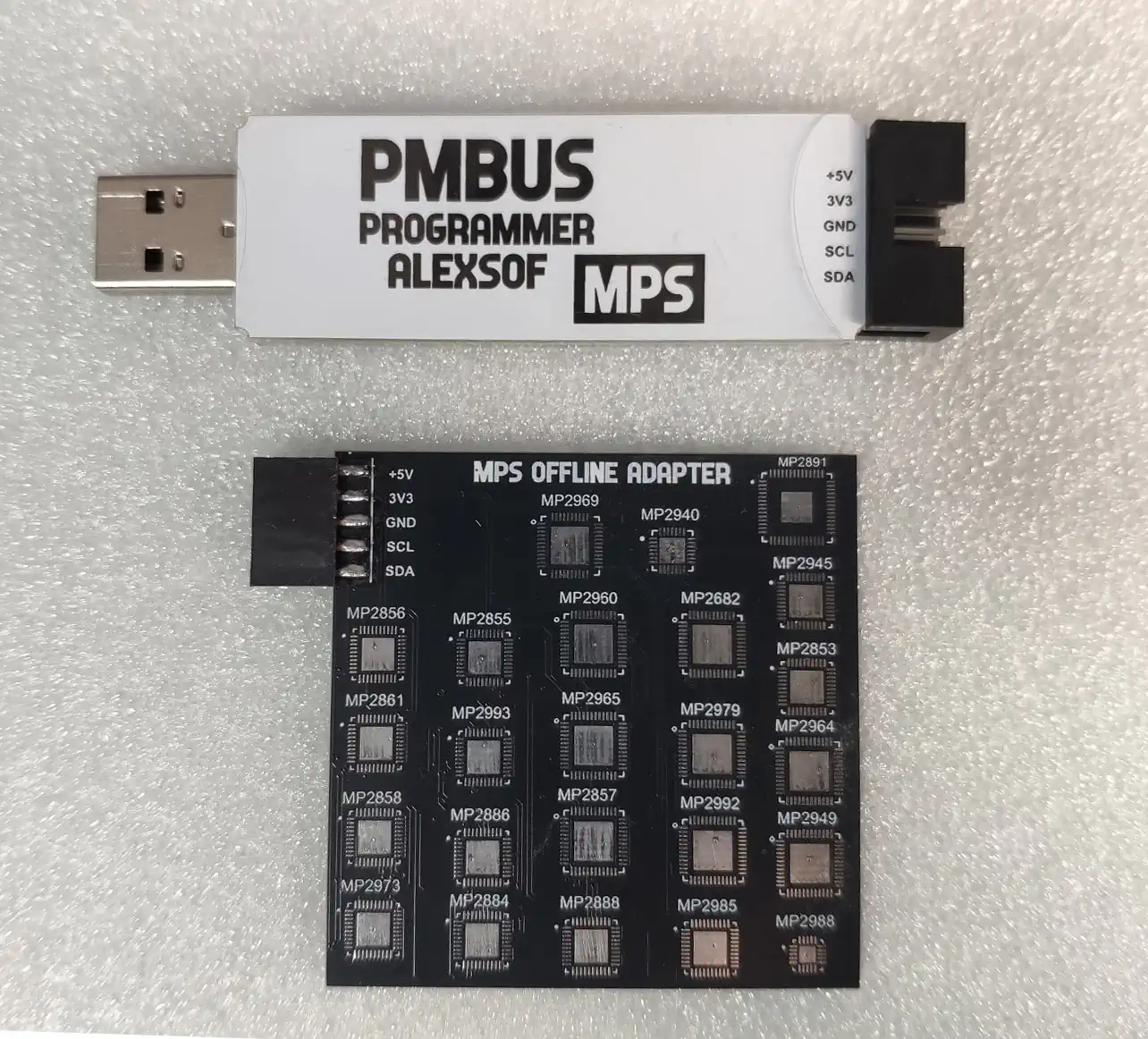

PMBUS PROGRAMMER [MPS] DUAL MODE ONLINE/OFFILINE SUPPORT OFFLINE ADAPTER

PMBUS MPS PROGRAMMER
Features:
Support Online/Offline mode ( connect to motherboard directly , or in some cases we need to solder the ic on the offiline adapter )
All Requirements Support
3V,1.8V,SCL,SDA
EN/PE,IREF,IREF2,PGOOD,SALRT
ESD Protections , Indicators
Read & Write program
Monitor functions online and offline
Change parameters
Support backup one chip or all systems ( multi chip together )

PMBUS PROGRAMMER CHIP SUPPORT LIST:
MP2940, MP2940A, MP2940C, MP2942, MP2943
MP2944, MP2945,MP2948C MP2949A, MP2950
MP2959, MP2962, MP2969, MP2979A,MP2955
MP2956,MP2958, MP2951, MP2853, MP2888
MP2886,MP2884, MP2965,MP2966,MP2968
MP5023,MP2975,MP2978,MP2972, MP2855
MP2949A, MP5920, MP5922, MP2926, MP2988
MP2971,MP2973, MP2845,MP2845A, MP2856
MP2857, MP2880, MP2882,MP2872,MP2874
MP2878,MP2960, MP2964, MP9941, MP2985
MP2992,MP2993, MP2986,MP2983,MP2975,MP2972
MP2976,MP2978,MP2995,MP5990,MPQ2977
MPQ2967,MPQ2861MP2862,MPQ8646,MP2860
MP2891,MP2890,MP2891A
